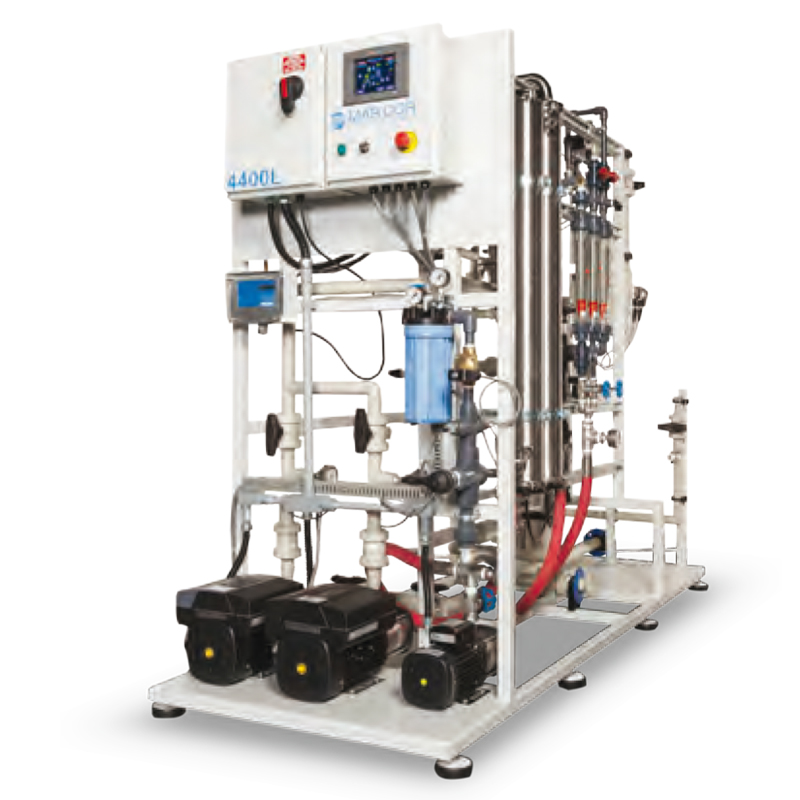

Reverse Osmosis Systems
Systems designed to produce from 1 to 21 USgpm of purified water, the systems meet the specifications of ISO 9001-2000.
TF Polyamide membranes, stainless steel housing, 1 micron prefilter, automatic valves, multi-stage stainless steel centrifugal pump. 316, 3 variable flow meters, recycle pump, programmable auto rinse, Clean-In-Place valves, recovery up to 75%.
Description
FEATURES
Electrical:
- 115v AC, 60Hz, one phase
- 0.75hp engine
- Recovery: 75%
- Rejection: 95-99%
Water requirements to be fed:
- TEMP. 2-35 ° C
- INPUT PRESSURE: 30 psig, PH: 2-11
- MAXIMUM FREE CHLORINE: <0.1ppm, SDI: <3, TDS <1,000 ppm
- LANGELIER INDEX <0.5, IRON / MANGANESE <0.1 ppm
