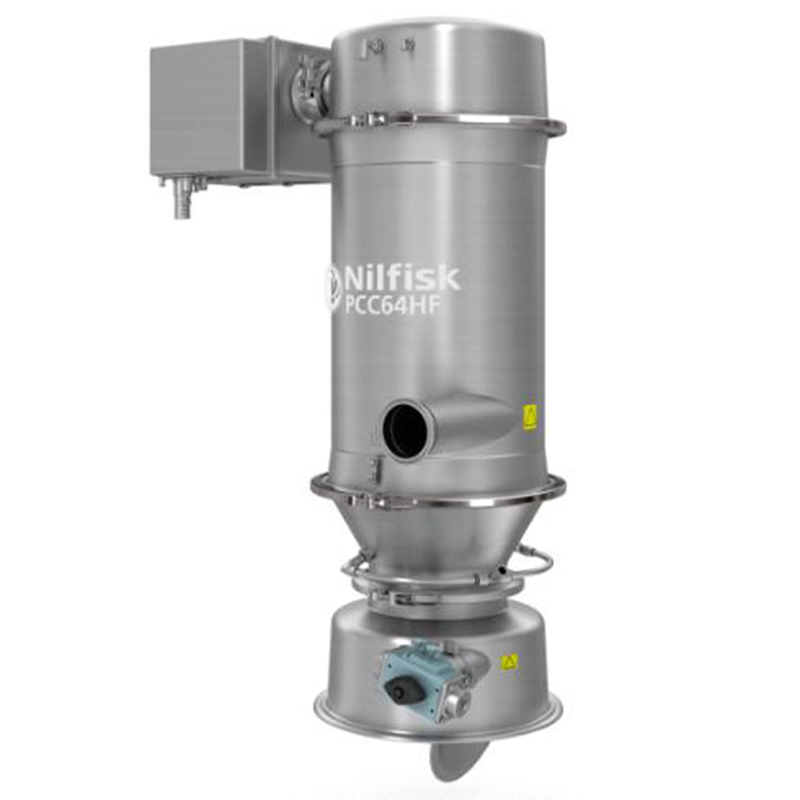

PCC64HF
Compressed air pneumatic conveyor for process machines in food industry, where is mandatory highest hygenic level, designed to be extremely efficient also with sticky materials. Thanks to fully pneumatic system, it is easy to install, use and service. USDA, FDA and1935/2004 approved, also available with ATEX certication.
The PCC64HF is the innovative pneumatic conveyor, conceived to be integrated into the process machines of pharmaceutical and food. With its capability of conveying up to 2600* Kg/h in the compact design makes it the best solution when a small space is available. The special filtering system and high performance in cleaning, ensuring the highest filtration performances and high durability of filter.
Description
The PCC64HF is available with or without control system, can be fully integrated in the process machine or can be used with its control system as fully independent conveyor. The PCC64HF line has been designed according to USDA guideline, it is FDA and 1935/2004 conform and fully GMP, each part can be easy disassembled without tools.
COAX® technology with 3-stage COAX® ejector is higly efficient, 30–50% more energy efficient than single stage ejectors, improves the performance with modular concept, pump size is determined by number of cartridges. Thanks to 3-stage cartridges, the PCC64HF line is highly flexible, capable to convey, with best performances, different materials of different granulometry and different specific weight.
All PCC conveyors have to be equipped with the dedicated accessories: feed nozzle or feed adapter. The performance of conveying considerably depends on material suction point. Accessories are designed to ensure the best performance of the conveyors.
*Performance indication is based on specific condition: specific material and specific conveying lenght.
-
- GMP conformity
- Compact design
- Silent
- Stainless steel AISI 316L
- 1935/2004 – USDA – FDA – ATEX – CE
