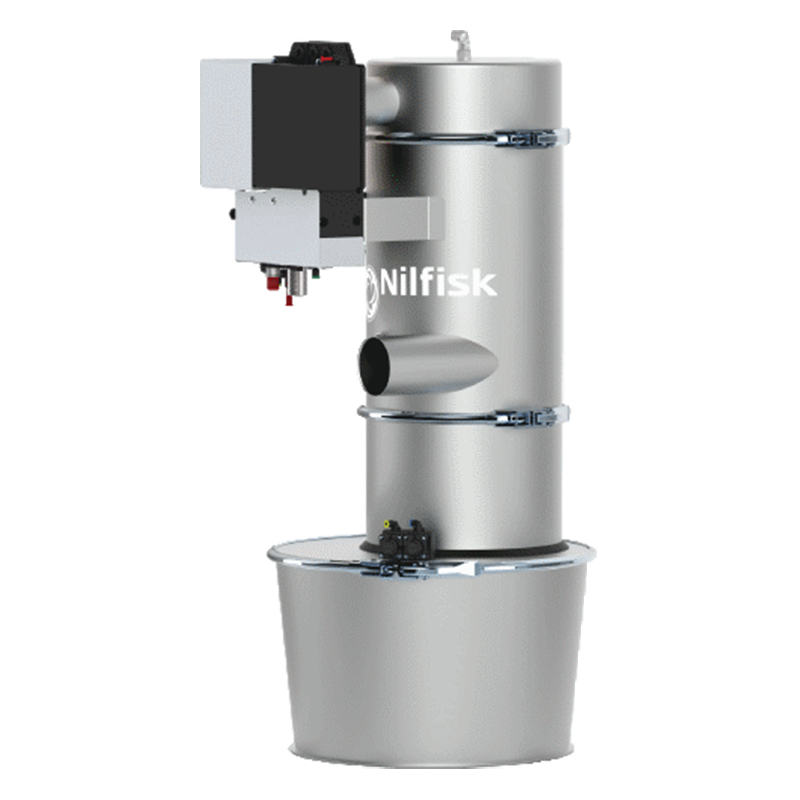

PCC44SF
Compressed air pneumatic conveyor for process machines in food industry or with demand of the same hygienic level. Designed to be extremely efficient, easy to install, use and service, thanks to fully pneumatic system. It is higly robust and flexible. FDA and 1935/2004 approved, also available with ATEX certication.
The PCC44SF is the innovative pneumatic conveyor , conceived to be integrated into the process of food industry. With its capability of conveying, up to 2700* kg/h, the conveyor is suitable for large amount of food material as for example coffee grains and corn or in general for all materials requiring very good hygienic level. The special filtering system and high performance in cleaning, ensure the highest filtration performance and high durability of filter.
Description
The PCC44SF is available with or without control system, can be fully integrated in the process machine or can be used with its control system as fully independent conveyor. The PCC44SF line has been designed to be conform to FDA and 1935/2004, available also with ATEX certification. The conveyor Is fully GMP, each part can be easy disassembled without tools.
COAX® technology with 3-stage COAX® ejector is highly efficient, 30–50% more energy efficient than single stage ejectors, improves the performance with modular concept, pump size is determined by number of cartridges. Thanks to 3-stage cartridges, the PCC44SF line is highly flexible, capable to convey, with best performances, different material of different granulometry and different specific weight.
All PCC conveyors have to be equipped with the dedicated accessories: feed nozzle or feed adapter. The performance of conveying considerably depends on material suction point. Accessories are designed to ensure the best performance of the conveyors.
*Performance indication is based on specific condition: specific material and specific conveying lenght.
-
- GMP conformity
- Compact design
- Silent
- Stainless steel AISI 304
- 1935/2004 – FDA – ATEX – CE
