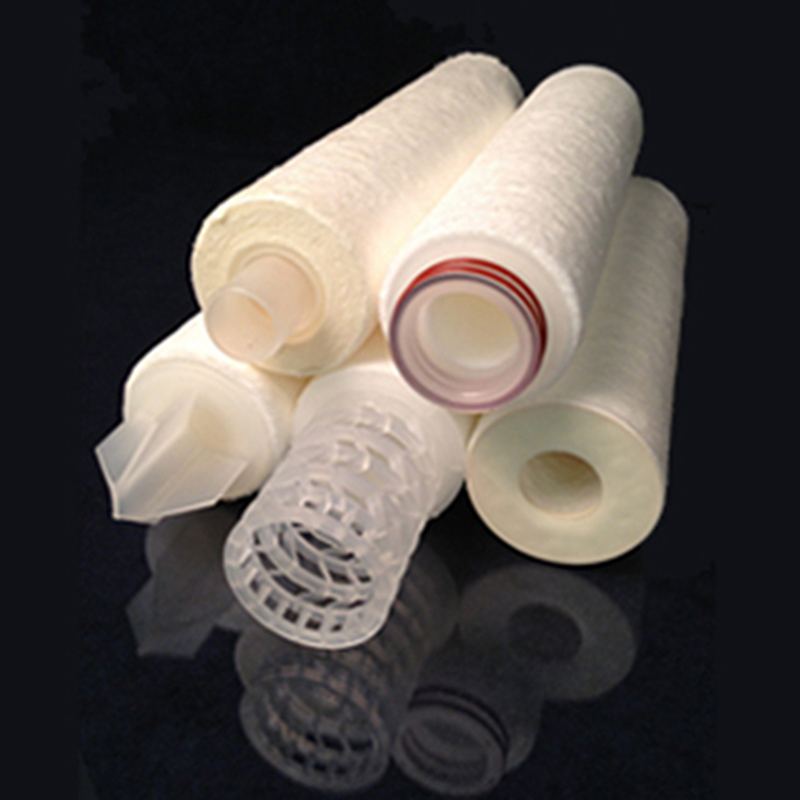

HYTREX™
Hytrex depth filters provide several unique advantages in filtration cartridge. The filters are completely self-sufficient, not scatter fibers and particles discharged under pressure surges. The contaminant particles are retained in polypropylene agglomerate and stringing, by direct impact, inertial forces, electrostatic forces and the absorption effect within its structure. It is made with FDA approved materials for food contact and water.
What filters does Hytrex offer that other cartridges cannot?
- True graduated density.
- Lower density on the filter surface with a density progressively greater towards the center.
- Particles are trapped along the entire cross section of the filter, creating superior dirt holding capacity.
- No blind surface, which reduces the flow and increases the exchange of filter outputs.
- High flow rates with low pressure drop across the entire flow range.
- Longer life compared to competitive cartridge filters.
Specify length and micron rage of the filter to quote.
Description
Thermo-sealed microfiber construction
- The thermally fixed fibers do not move under pressure or pressure surges and dislodges dirt from the filtrate.
- Extremely small continuous filaments maximize controlled porosity and complex tortuous pathways.
- High structural strength and integrity to provide an excellent final seal.
- Less media migration ensures that there is no contamination of the filter fiber.
- Patented thermal bonding process of blown microfibers ensures consistent performance, filter by filter.
- A pure individual material.
Highest quality controlled batches of polypropylene
- It does not contain wetting agents, solvents, anti-static agents, binders or additives of any kind.
- Inert material means broad chemical compatibility.
- Not reachable or removable.
- Incinerate to track ash without dangerous volatiles, for easy disposal.
- Meets the requirements of the Food and Drug Administration (FDA) to be in contact with food and beverages.
Automated Continuous Phase Manufacturing
- Continuous construction in lengths from 1 ½ inches (3.8 cm) to 50 inches (127 cm) without joints or welds.
- Self-supporting does not require a separate central core.
- Marked with the micron rating on the cartridge for easy filter identification.
- Vacuum and thermal finishing procedures virtually eliminate manufacturing waste.
- The pure integral polypropylene end adapters fit the filter housing without leakage.
- The mechanized packaging and sealing of each cartridge offers clean filters in the field.
- Consistent automated manufacturing ensures reliable performance and repeatable results year after year.
