With Output Control for “Spot” Fogging

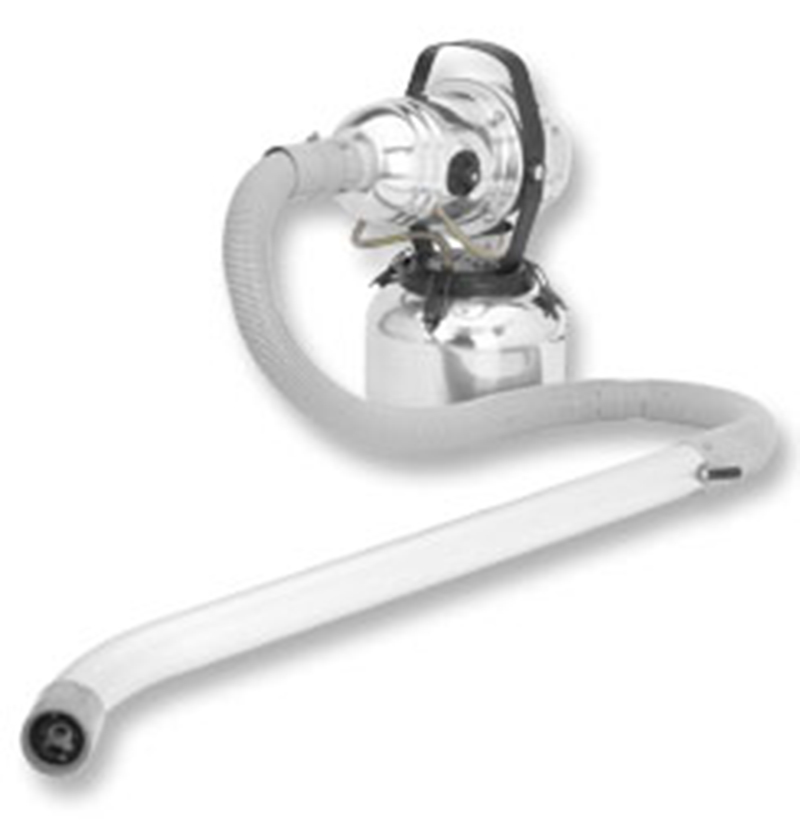

The APPS Fogger with hose features a hose and wand with discharge control. Lightweight and portable, it allows “spot” fogging without filling the room or wasting chemical.

When you want fog, just aim the nozzle and press the thumb valve. It’s spring loaded for one-handed operation, but can be latched “on” if you want continuous output. No matter what your task, his powerful 30 cfm blower makes it quick work.

A separate regulating valve in the power head controls droplet size in the discharge stream. Open up the valve for large mist droplets which settle quickly. Turn it down for small fog particles with longer float times and better penetration.

First developed to apply germicides to air-conditioning ducts, has proven useful for other “directed fog” applications including removing smoke odors from draperies and upholstery, applying anti-mildew chemicals beneath carpets, and pest control in restaurants and commercial kitchens (treating wall voids, above ceilings and under appliances without filling the room with fog).

SKU: f938773a43b6 Categories: , , , , , ,

Description

Motor

  • 1 Hp, 50/60Hz
    • 780710: 120V, 8 amp
    • 780720: 220-240V, 4 amp.



Fogging Nozzle

  • High-shear, counter-rotating vortex design



Hose/Wand Assembly

  • Power head requires a hose/wand nozzle assembly.
  • The standard hose length is 36″. Two wand assemblies are available:
    • Short (16″) straight wand
    • Long (38″) wand with 30° curved end



Fog Range & Droplet Size

  • Visible fog 30-40 feet from end of wand
  • 10-30 micron VMD (dry fog to heavy wet mist)



Liquid Flow Rate

  • ON/OFF toggle valve on wand
  • 0-9 oz/min [0-270 cc/min]
  • One turn control valve



Tank Capacity

  • 1 gallon [4 liters]



Materials of Construction

  • Power head housing and tank – aluminum
  • Tubing – fuel and oil resistant vinyl
  • Fittings and control valve – brass
  • Hose & wand – vinyl and aluminum
  • Nozzle – Celcon® acetyl copolymer



Options

  • Stainless steel fittings (includes SS toggle valve)
  • Precision 9-turn valve for flow control
  • Stainless steel tank



Regulatory Compliance

  • UL, CSA, CE, PSE



Dimensions

  • Power Head: (H x L x Dia): 15.4 x 10.4 x 8.6 in
  • Hose and wand: 36″ hose and 16″ or 38″ wand



Shipping Weight

  • 12 + 5 pounds (2 cartons)



Warranty

  • One year
